Quadcopter Flight Simulator in C and Three.js
This is a basic quadcopter simulator built using Three.js as a fun weekend project. The simulator solves the nonlinear dynamics of a quadcopter, taking into account the equations of motion of the body, the dynamics of the four rotors and the battery charge. The included controller uses a simple proportional control in ACRO mode, controlling angular rates based on linearized dynamics, without any thrust compensation.
🚀 Getting started

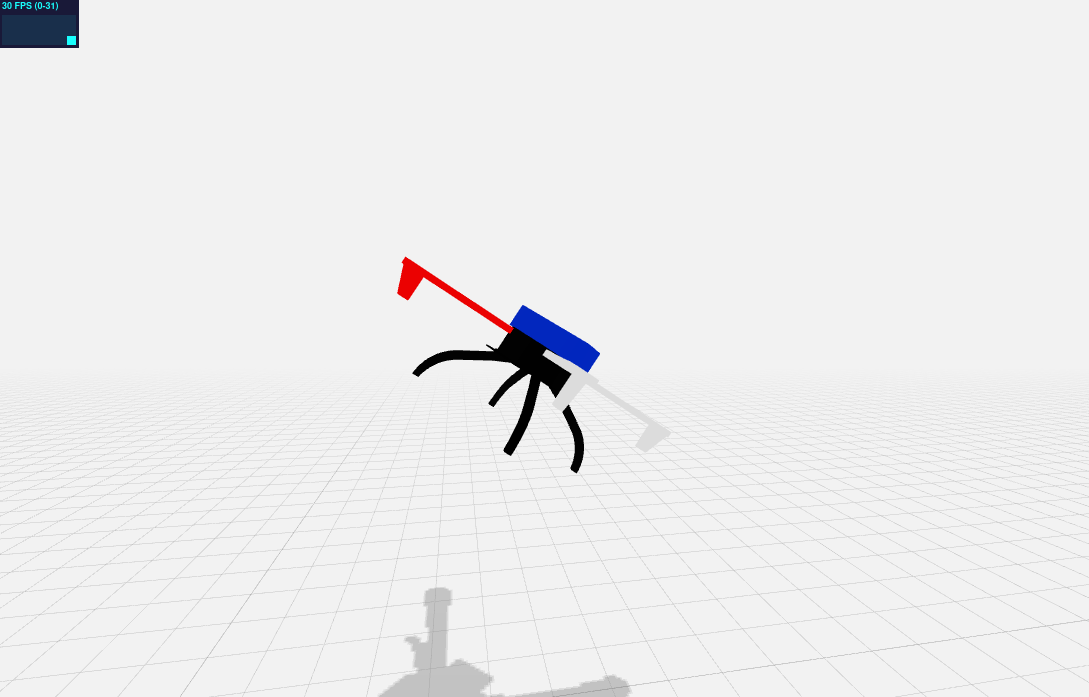

The easiest way to run the simulator is from your web browser The simulator will render a 3D quadcopter model, and you can control it using a keyboard (WASD for roll/pitch, arrows for thrust/yaw).
🤔 Assumptions and Limitations
As this is a weekend project, several assumptions were made to simplify the model:
- No electrical transient in the brushless motors
- Effect of temperature is neglected
- Constant friction torque
- Propeller thrust and torque approximated with fixed-point performance (J=0)
- Secondary aerodynamic effects are neglected (propeller cross-flow, P-factor, propeller wakes, vortex ring, ground effect, rotation rates, influence of the frame…)
- Coriolis effect is neglected
These assumptions have a strong influence on the accuracy of the simulation. Note that this simulator is a basic implementation and may not be entirely accurate or realistic. It is intended for experimental purposes only.
